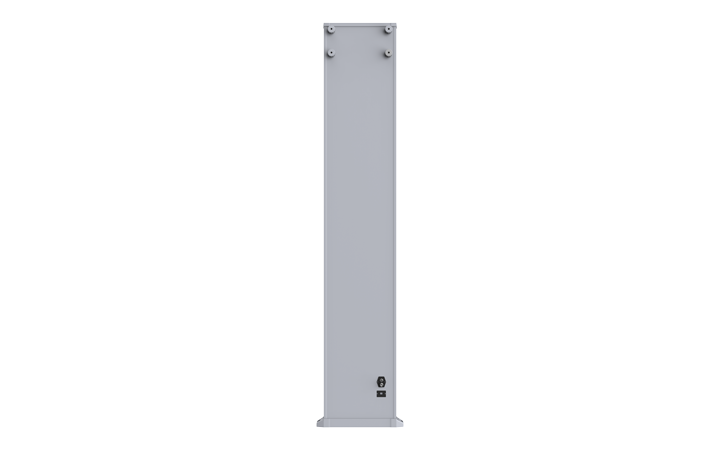

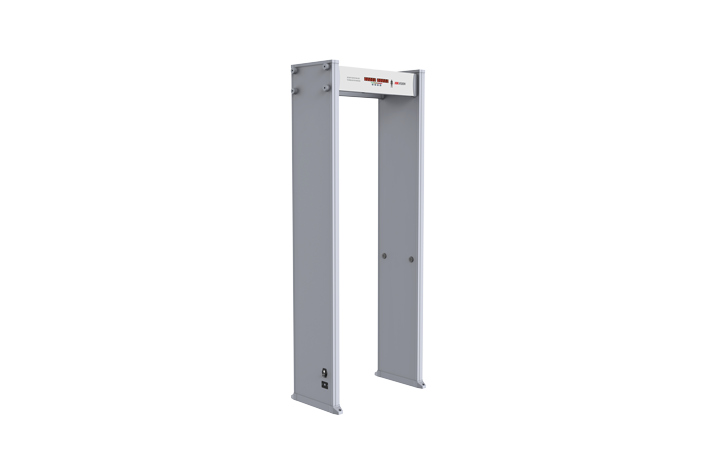

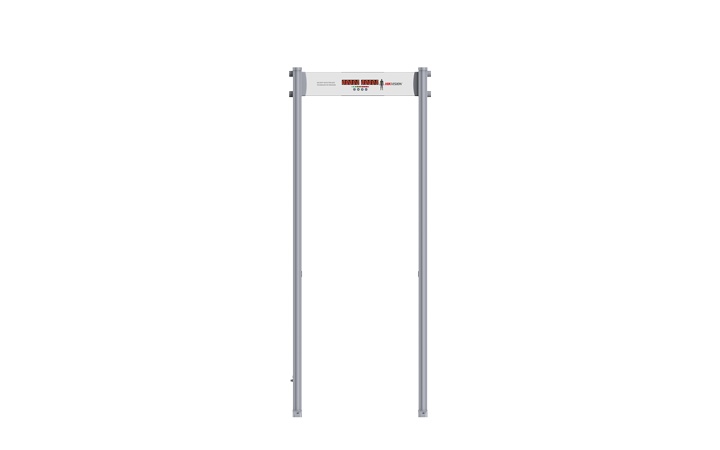

The ISD-SMG111-NW is a 11-zone walk through metal detector that can detect metals of people passing through and alarm for prohibited metals. This product is suitable for shopping malls, hotels, enterprises and other places.
.png)
.png)
.png)
It can detect metal as big as a coin with a diameter of about 25mm.
Environmental interference can be reduced by adjusting various frequencies.
The device sensitivity is 255 levels and can be adjusted according to the size of the metal being detected.
Metals located in different areas can be detected simultaneously.
Connect the HCP over network to manage the data, such as alarm, people counting, etc.
When the device is powered on, the system will automatically start self-diagnosis and display the results.
Bilateral infrared sensors can accurately detect the number of people passing through the detector.
Support LED segment displays, can display important information such as passage numbers, alarm numbers, etc.
The equipment components adopt modular design, which is easy to maintain and transport.
Comply for international standards, it is harmless to people with heart maker, pregnant woman etc.
| Size | |
|---|---|
| Tunnel Size | 2024 mm(H) × 734 mm(W) × 405 mm(D) |
| Dimension | 2205 mm(H) × 852 mm(W) × 478 mm(D) |
| Package Size | 2244 mm(L) × 516 mm(W) × 230 mm(H) |
| Device Parameters | |
| Power Supply | Adapter Output: DC 15V, 4A; Adapter Input: AC 100V ~ 240V, 50/60Hz; |
| Power Consumption | Max. 10W |
| Operation Temperature / Humidity | -20 °C to 45 °C / 0 % to 95 % (non-condensing) |
| Safety Protection | IP41 |
| Weight | Net: approx.35Kg; Gross: approx. 40Kg; |
1. Electromagnetic interference: Nearby electrical equipment, high-frequency communication devices, or unstable power supplies may affect the surrounding electromagnetic environment and influence detection performance.
2. Metallic surroundings: Large metal structures, reinforced floors, or other nearby metal objects can interfere with the detector's magnetic field if the installation environment is not properly evaluated.
3. Human factors: Personal metal items such as keys, belt buckles, coins, or metal zippers may trigger alarms. In addition, passing through the detector too quickly, too slowly, or with multiple people at the same time can reduce screening accuracy.
Proper installation, calibration, and standardized screening procedures help ensure reliable and consistent detection performance.
A walk-through metal detector creates a stable electromagnetic field between its side panels. As a person passes through, any carried metal object changes the magnetic field. The system analyzes these changes and triggers an alarm when metal is detected, enabling fast and non-contact security screening.
