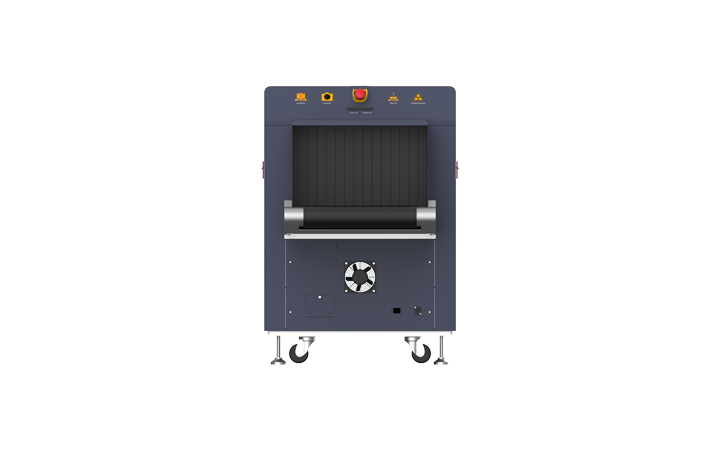

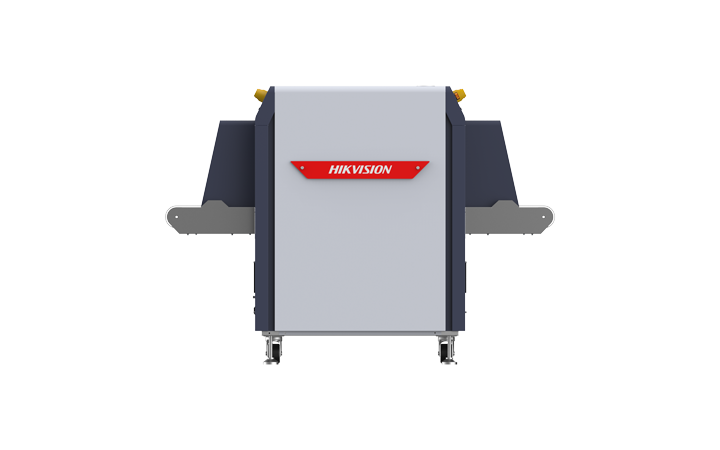

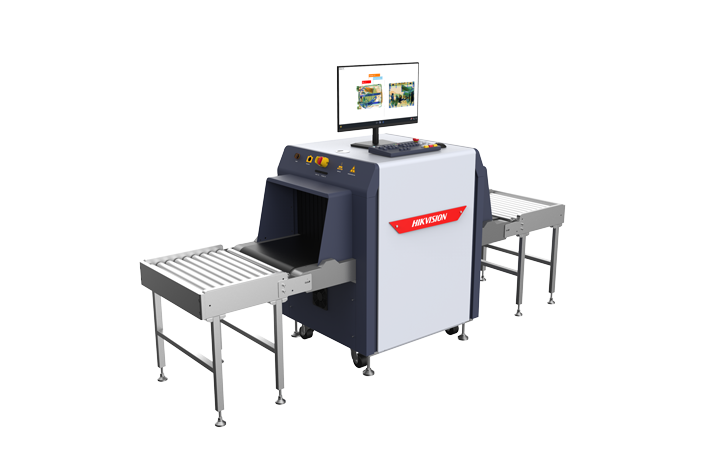

The ISD-SC5030S-H2CVL X-ray intelligent inspection system which combines functions such as intelligent recognition, person and package linkage, AI open platform etc., better solve more problems such as under-detection caused by low security inspector concentration, and excessive stress during peak security check. The product is applicable to application scenarios such as government office, scenic spots, court, procuratorate, prison, embassy, factory, school, hospital, sports, culture events etc. It is applicable for security inspection of satchels, parcels, express wares, hand baggage and small-sized packages.
.png)
.png)
.png)
Integrated with a new generation of self-developed image enhancement algorithm, significantly improving the X-ray image clarity of the baggage.
Advanced material discrimination technology is used to recognize the equivalent atomic number of the test object and assign different colors (3 or 6 colors).
Integrated with self-developed deep learning recognition and X-ray imaging algorithm, better improving the recognition.
Allow users themselves to import the new intelligent models for better on-site recognition.
Smooth the picture and eliminate visual fatigue caused by flickering.
One-click switch the speed according to usage scenario.
Connect the HCP over network to manage the data for security inspection business.
Review the video that links with X-ray image to playback the situation at that time.
Supports face, fingerprint and password, user can login in the device by any of three methods.
Clearly warn the operators when the prohibited articles are detected.
Supports storing and reviewing video, images, and alarm information locally of security inspection system.
Link the X-ray image of the baggage with the picture of the tunnel camera.
Link the X-ray image of the baggage with the video of the cameras.
| Size | |
|---|---|
| Tunnel Size | 500 mm(W) × 300 mm(H) |
| Dimension | 1483 mm(L) × 730 mm(W) × 1060 mm(H) |
| Device Parameters | |
| Power Consumption | Max. 0.6 KW |
| Power Supply | AC 230V (-10% to +10%) , 50Hz/60Hz (±3Hz) AC 110V (-10% to +10%) , 50Hz/60Hz (±3Hz) |
| Noise Level | 60dB(A), 1000 mm away from the device surface |
| Operating Temperature / Humidity | 0 °C to 40 °C / 10 % to 95 % (non-condensing) |
| Storage Temperature / Humidity | -20 °C to 60 °C / 0 % to 95 % ( non-condensing) |
| Weight | Net: approx. 240 Kg (excluding Roller table) |
An X-ray baggage scanner uses X-rays to inspect the contents of baggage or parcels without opening them. The system generates clear images based on how different materials absorb X-rays, allowing operators to identify suspicious or prohibited items quickly and efficiently.
Single-energy X-ray systems primarily display the shape and density of inspected objects. Multi-energy X-ray systems use multiple X-ray energy levels to help distinguish different types of materials, such as organic, inorganic, and mixed substances. This provides operators with more information for accurate threat detection.
Different colors in an X-ray image represent different types of materials. For example, orange typically indicates organic materials, blue represents metals and other inorganic materials, and green usually indicates mixed materials or light metals. The exact color scheme may vary depending on the system configuration and image processing technology.
A single-view X-ray system captures an image from one angle, making it suitable for routine security screening. A dual-view X-ray system captures images from two different angles simultaneously, reducing object overlap and improving the visibility of concealed items. This helps operators make faster and more accurate inspection decisions.
