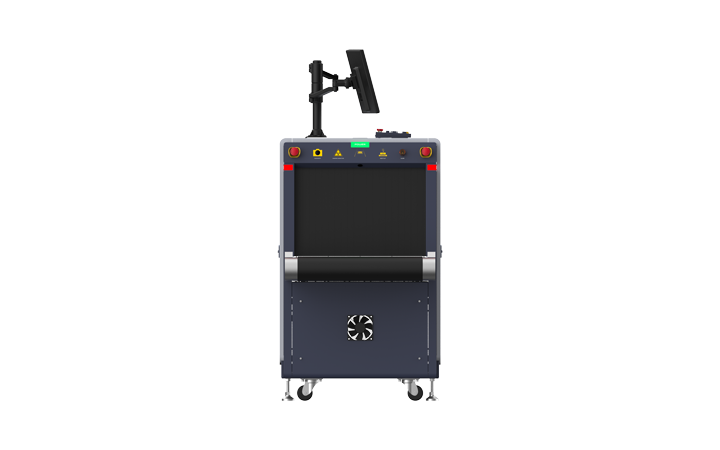

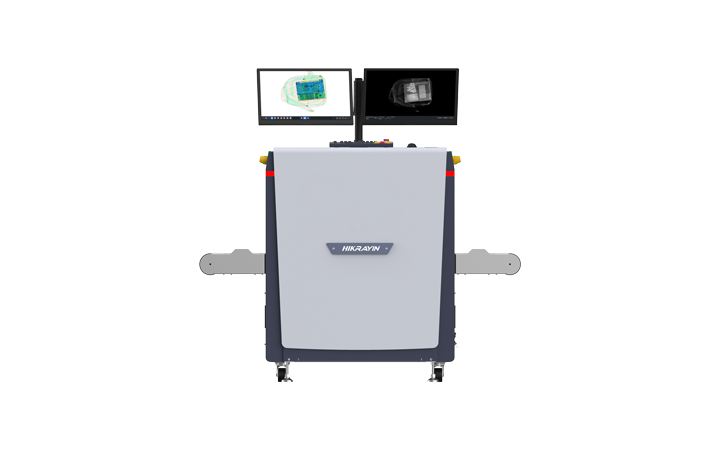

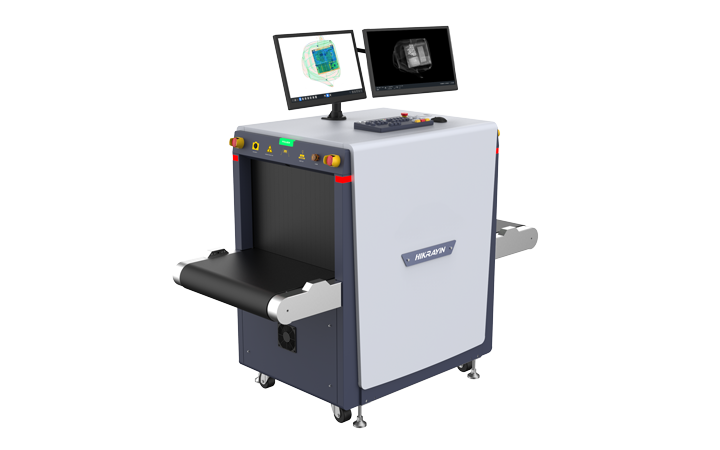

ISD-CA6040S-H(BS) is a new-generation X-Ray security inspection system engineered for security checkpoint. Designed to handle carry-on luggage, 20-inch cabin suitcases, backpacks, and parcels, it features integrated AI detection algorithms that enable automatic suspected objects alarming. The system is ideally suited for deployment across customs checkpoints, railway stations, ports, stadiums, and other high-traffic public venues.
-(1).png)
-(3).png)
-(4).png)
.png)
Leveraging advanced X-Ray imaging technology and new-generation RAYTINA HD imaging algorithms, it delivers superior resolution image quality to meet the most demanding security and operational efficiency requirements.
Powered by the HIKVISION Guanlan Large-Scale AI Models, the detection accuracy of suspected objects has been greatly improved while the false alarm rate has been greatly reduced.
Correlate the X-Ray image of the baggage with the image captured by the camera to make event tracing more convenient and accurate.
The compact design reduces spatial footprint, enabling easier deployment in space-limited entrance environments.
| Size | |
|---|---|
| Tunnel Size | 620 mm (W) × 420 mm (H) |
| Dimension | 1700 mm (L) × 760 mm (W) × 1240 mm (H) |
| Device Parameters | |
| Power Consumption | Max. 0.92 KW |
| Power Supply | 230 VAC(±10%) 50 Hz/60 Hz(±3Hz) 110 VAC(±10%) 50 Hz/60 Hz(±3Hz) |
| Noise Level | ＜ 60dB(A) at 100 cm away from the device surface |
| Operating-/ Storage Temperature | 0°C ~ 40°C / -20°C ~ 60°C |
| Humidity | 5% ~ 95% (not condensing) |
| Weight | Net: approx. 490 Kg |

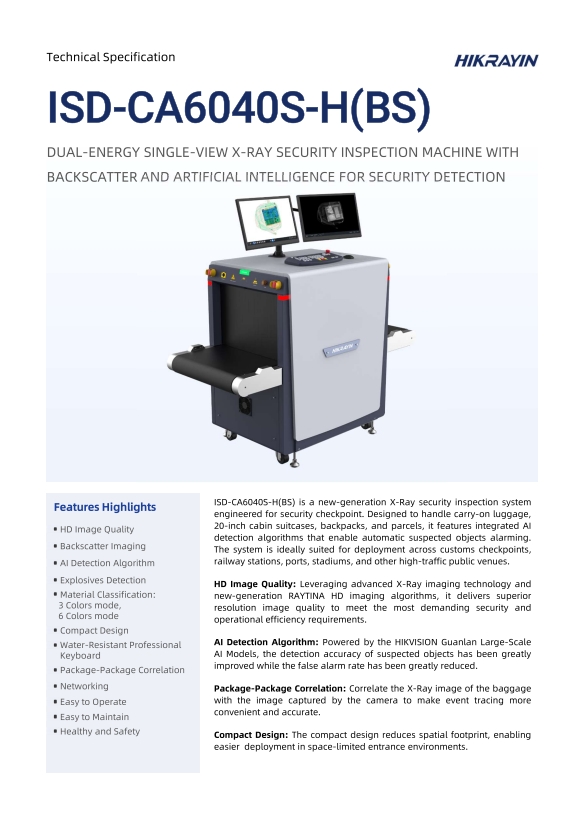

 DataSheet.jpg)
An X-ray baggage scanner uses X-rays to inspect the contents of baggage or parcels without opening them. The system generates clear images based on how different materials absorb X-rays, allowing operators to identify suspicious or prohibited items quickly and efficiently.
Different colors in an X-ray image represent different types of materials. For example, orange typically indicates organic materials, blue represents metals and other inorganic materials, and green usually indicates mixed materials or light metals. The exact color scheme may vary depending on the system configuration and image processing technology.
A single-view X-ray system captures an image from one angle, making it suitable for routine security screening. A dual-view X-ray system captures images from two different angles simultaneously, reducing object overlap and improving the visibility of concealed items. This helps operators make faster and more accurate inspection decisions.
