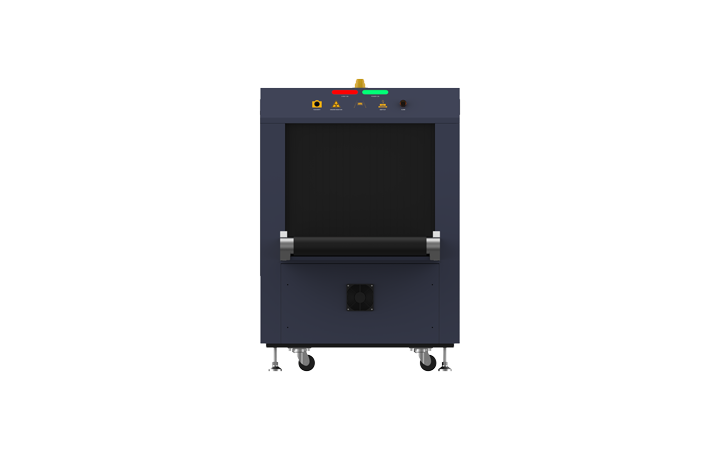

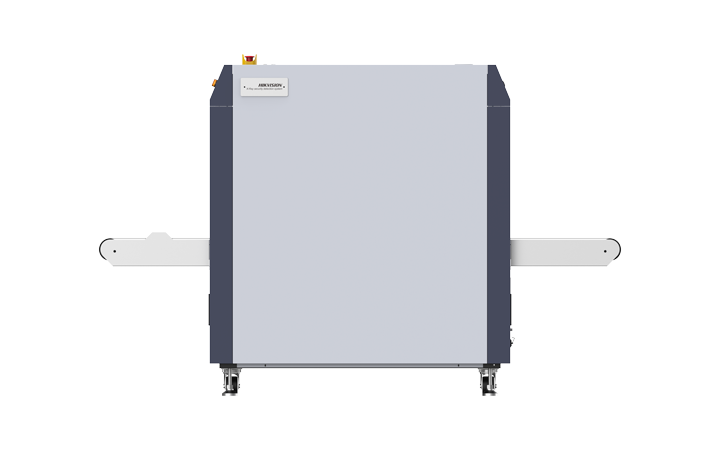

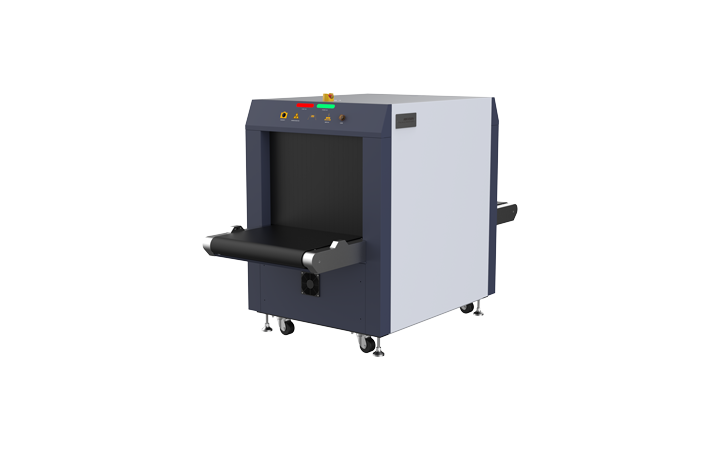

The ISD-SG6550SA-2CL X-ray intelligent inspection system which combines functions such as intelligent recognition, package-package linkage, event traceback etc., better solve more problems such as under-detection caused by low security inspector concentration, and excessive stress during peak security check. The product is applicable to application scenarios such as airport, customs, railway, metro, prison, government office, commercial building, hotel, embassy, sports, culture events etc. It is applicable for security inspection of satchels, parcels, express wares, hand baggage and small-sized packages.
.png)
Integrated with self-developed deep learning recognition and X-ray imaging algorithm, better improving the recognition.
Connect the HCP over network to manage the data for security inspection business.
Review the video that links with X-ray image to playback the situation at that time.
Clearly warn the operators when the prohibited articles are detected.
Review the video that links with X-ray image to playback the situation at that time.
Link the X-ray image of the baggage with the picture of the tunnel camera.
Link the X-ray image of the baggage with the video of the cameras.
| Size | |
|---|---|
| Tunnel Size | 650 mm(W) × 500 mm(H) |
| Dimension | 2011 mm(L) × 887 mm(W) × 1300 mm(H) |
| Device Parameters | |
| Power Consumption | Max. 0.6 KW |
| Power Supply | AC 230V (-10% to +10%) , 50Hz/60Hz (±3Hz) AC 110V (-10% to +10%) , 50Hz/60Hz (±3Hz) |
| Noise Level | 60dB(A), 1000 mm away from the device surface |
| Operating Temperature / Humidity | 5 °C to 40 °C / 10 % to 95 % (non-condensing) |
| Operating Temperature / Humidity | -20 °C to 60 °C / 0 % to 95 % (non-condensing) |
An X-ray baggage scanner uses X-rays to inspect the contents of baggage or parcels without opening them. The system generates clear images based on how different materials absorb X-rays, allowing operators to identify suspicious or prohibited items quickly and efficiently.
Single-energy X-ray systems primarily display the shape and density of inspected objects. Multi-energy X-ray systems use multiple X-ray energy levels to help distinguish different types of materials, such as organic, inorganic, and mixed substances. This provides operators with more information for accurate threat detection.
A single-view X-ray system captures an image from one angle, making it suitable for routine security screening. A dual-view X-ray system captures images from two different angles simultaneously, reducing object overlap and improving the visibility of concealed items. This helps operators make faster and more accurate inspection decisions.
