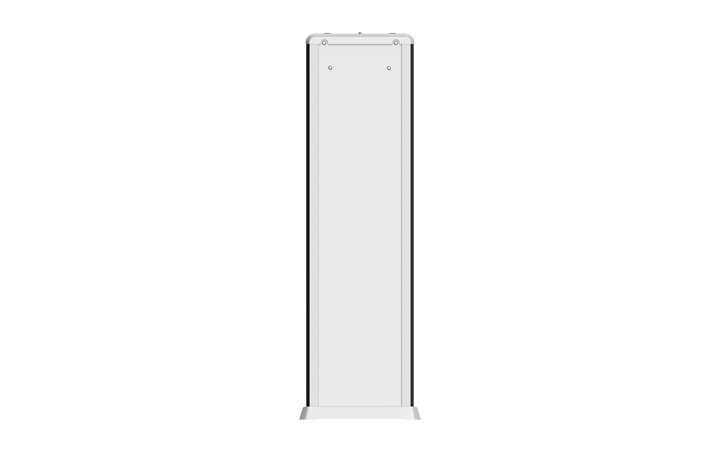

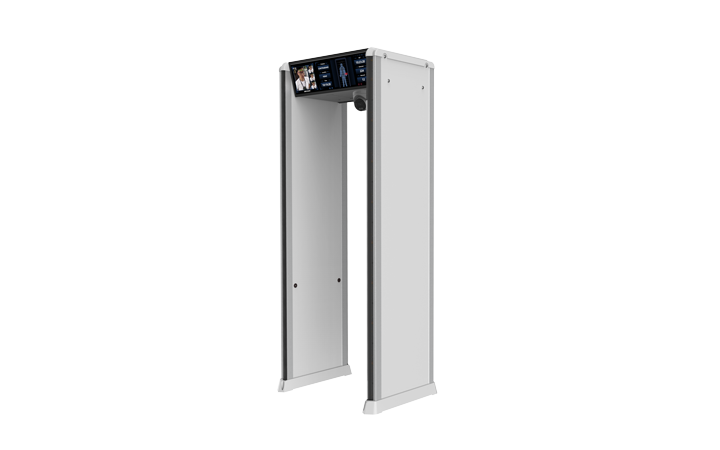

The ISD-SMG924LC-HI walk through metal detector that is capable of high sensitivity and anti-interference can carry out metal detection for person and effectively identify illegal items. It can be used in enterprises, factory workshops, prisons, governments, office buildings, schools, hospitals, cultural and museum scenic spots, large-scale security activities and other scenarios.
.png)
.png)
.png)
The metal as small as a paper clip or a sewing machine needle can be effectively detected and also can detect non-ferromagnetic metals with weight over 5 grams.

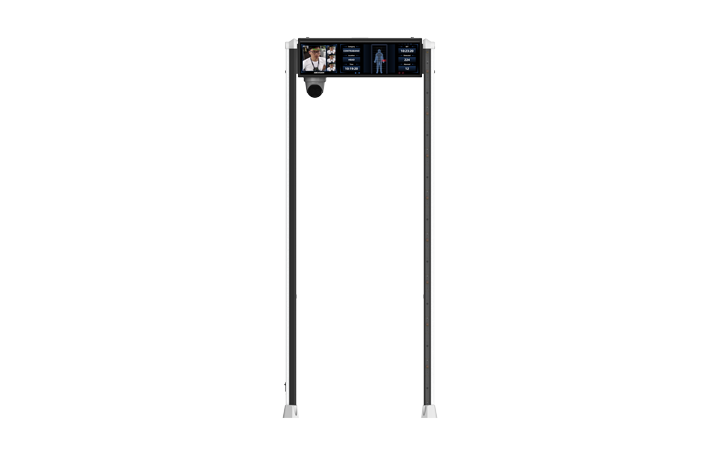

Two doorposts are equipped with LED light bar, can intuitively display the area where prohibited items are located.
Allow user use a web browser to edit remotely the configuration parameter of the device.
The components are modular designed and are easy to maintenance and transport.
Bi-lateral IR sensor can accurately detect the number of people passing through the detector.
Support a 10.1-inch LCD color touch screen and a 29-inch color screen, can display important information such as passage numbers, alarm numbers, facial capture, time / date, etc.
supports self-test of the system and displays the test result.
It supports detecting whether there is environmental interference and can automatically switch to the optimal frequency band.
Equipped with a 2 million pixel IPC for continues recording and facial capture, allowing for easy review and retrieval.
Comply with international standards, it is harmless to people with heart maker, pregnant woman etc.
| Size | |
|---|---|
| Tunnel Size | 2002 mm(H) × 746 mm(W) × 625 mm(D) |
| Dimension | 2240 mm(H) × 912 mm(W) × 707 mm(D) |
| Package Size | Case: 875mm(L) × 660mm(W) × 350mm(H); Planks: 2325mm(L) × 785mm(W) × 270mm(H); IP Camera: 192mm(L) × 182mm(W) × 160mm(H); |
| Device Parameters | |
| Power Supply | AC 100 ~ 240V, 50 / 60Hz |
| Power Consumption | Max. 80W |
| Operation Temperature / Humidity | -10 °C to 55 °C / 0 % to 95 % (non-condensing) |
| Weight | Net: approx. 79 Kg Gross: approx. 88 kg Case(includes Package): 23 kg; Planks (includes Package): 64 kg; IP Camera(includes Package): 1 kg; |
1. Electromagnetic interference: Nearby electrical equipment, high-frequency communication devices, or unstable power supplies may affect the surrounding electromagnetic environment and influence detection performance.
2. Metallic surroundings: Large metal structures, reinforced floors, or other nearby metal objects can interfere with the detector's magnetic field if the installation environment is not properly evaluated.
3. Human factors: Personal metal items such as keys, belt buckles, coins, or metal zippers may trigger alarms. In addition, passing through the detector too quickly, too slowly, or with multiple people at the same time can reduce screening accuracy.
Proper installation, calibration, and standardized screening procedures help ensure reliable and consistent detection performance.
A walk-through metal detector creates a stable electromagnetic field between its side panels. As a person passes through, any carried metal object changes the magnetic field. The system analyzes these changes and triggers an alarm when metal is detected, enabling fast and non-contact security screening.
