This series of equipment mainly consists of seven major subsystems: a micro-focus X-ray source, imaging unit, computer image processing system, mechanical system, electrical control system, safety protection system, and alarm system. By integrating modern non-destructive testing (NDT) technology, computer software technology, image acquisition and processing technology, mechanical transmission technology, and AI algorithms, the system combines optical, mechanical, electrical, and computing technologies into a single platform. Utilizing differences in X-ray absorption by materials of varying densities and thicknesses, the system generates images of the internal structure of an object and performs internal defect inspection. It provides real-time, high-definition inspection images of products, enabling the identification of internal defects as well as the classification and grading of defect types. In addition, according to user-specific requirements, the AI algorithm can automatically evaluate detected defects, ensuring the accuracy, consistency, and objectivity of inspection results.

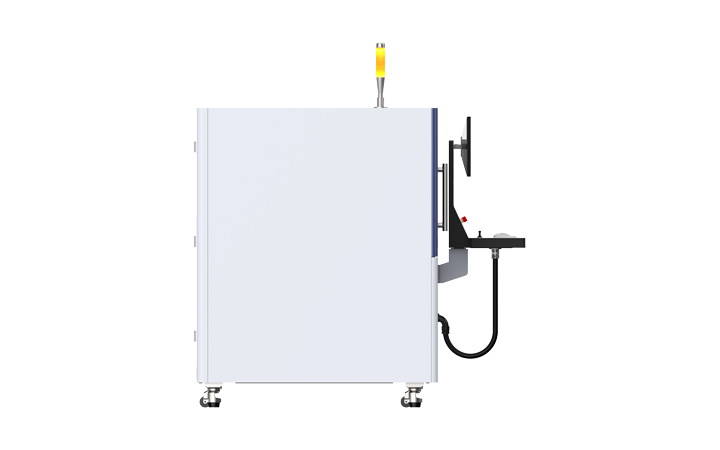

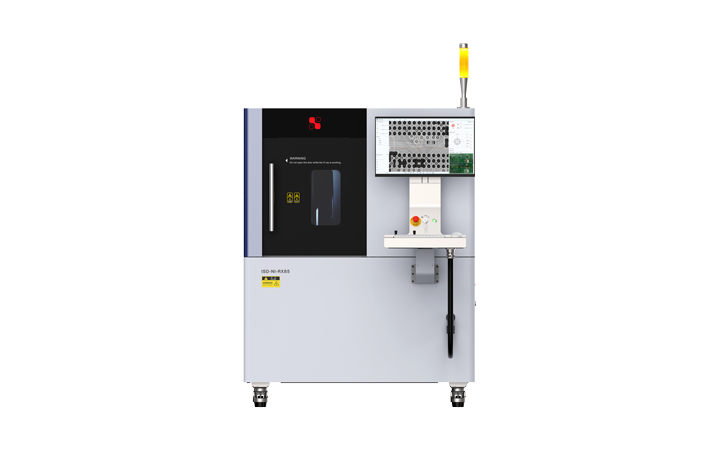

.png)
.png)
.png)
Up to 45× geometric magnification and a minimum 4μm focal spot size, equipped with AI denoising and AI super-resolution imaging technologies.
Built-in Hikvision Guanlan AI model enables one-click void detection.
Easy to operate with only 30 minutes of training required for full operation.
Supports both sampling and full inspection.
Improved hardware protection; surface radiation dose equivalent rate <0.5μSv/hr.
X-ray data can be bound to product codes, enabling full defect traceability.
| Overall Specifications | |
|---|---|
| Overall Dimensions | 1250mm(L)*1300mm(W)*1600mm(H) |
| Overall Weight | 1000KG |
| Overall Power Consumption | 550W |
| Power Supply | AC 220V 50/60Hz |
| Operating Temperature | 10-35℃ |
| UPS | Equipped with UPS to prevent data loss caused by unexpected power outages |
| Certification | CE Compliant |
An Automated X-ray Inspection (AXI) system captures X-ray images of electronic products and analyzes their internal structure without damaging the product. Powered by Hikvision Guanlan Large-Scale AI Models, the system automatically compares inspection images with trained AI models to detect defects, missing components, and assembly issues, helping improve inspection accuracy and production efficiency.
