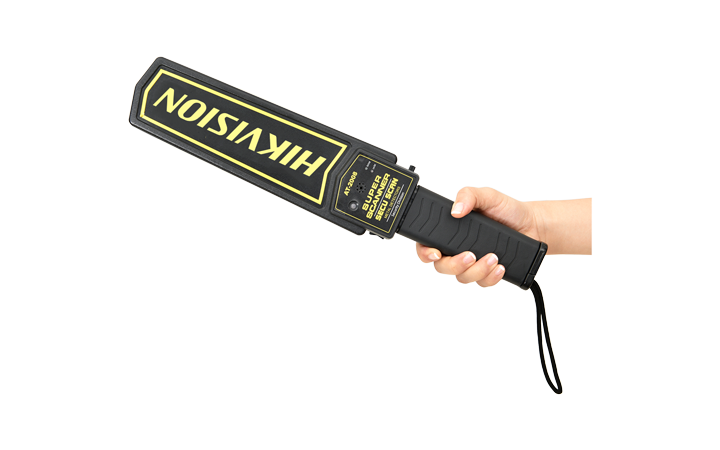

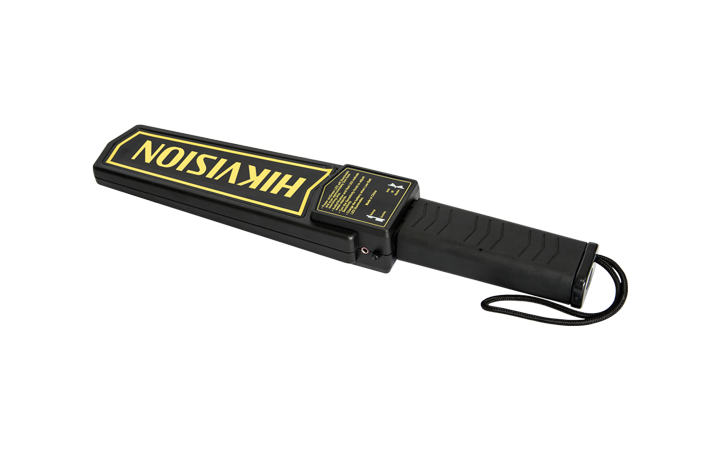

NP-SH100 Hand-held metal detector is used for security check in security areas such as examination room, airport, station, customs, wharf, stadium, convention center, frontier guard, etc. It is also used in metal industry for preventing pilferage of precious metal such as gold and silver jewelry, rare metals, electronic components, etc.
Adjustable detection sensitivity for different requirements
Low battery alarm
Vibrated alarm, and audible & visual alarm
LED for battery/charging indication
With rechargeable battery and charger
High detection speed with big probe area
1 m drop protection
| Size | |
|---|---|
| Dimension | 410 mm(L) x 85 mm(W) x 45 mm(H) |
| Device Parameters | |
| Voltage / Current | 9V Battery or Rechargeable Battery / Max. 50 mA |
| Power Consumption | Max. 0.27 W |
| Operation Temperature | -5 °C to 55 °C |
| Weight | Net: approx. 400 g(without battery) |
Detection performance mainly depends on the size of the metal object and its distance from the detector. Larger metal objects are generally easier to detect than smaller ones, while objects closer to the detection surface produce stronger signals. Proper scanning techniques also help achieve more reliable screening results.
A handheld metal detector uses electromagnetic technology to detect metal objects. It generates a magnetic field around the detection area and monitors changes caused by nearby metal. When a metal object is detected, the device immediately alerts the operator with audible, visual, or vibration alarms.larm.
