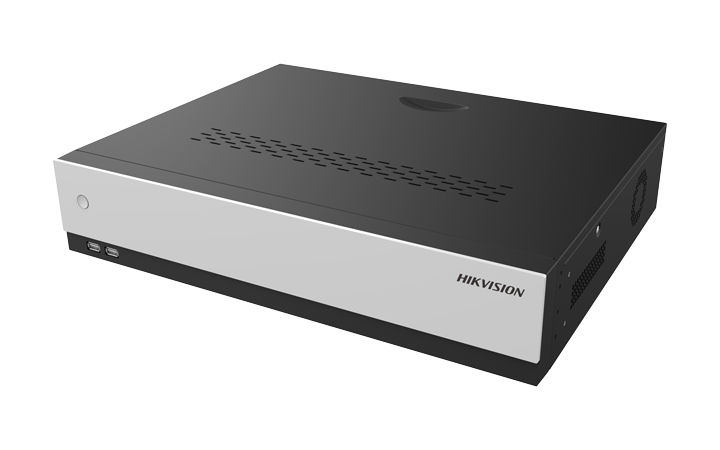

ISD-ST204D-DHV adopts embedded design,friendly interactive interface and embedded deep learning algorithm to connect with its own security inspection system,which can accomplish the intelligent reform of traditional security check,realize the network of security checking machine, structure the security check image,and carry out intelligent classification of contraband,integrating businesses as video monitoring,hik platform connection and personnel channel.The products are applicable to government agencies,scenic spots,courts,procuratorates,prisons, embassies,factories,schools,hospitals,gymnasiums, exhibition halls,entertainment venues and other scenes, and can be used for security check of briefcases,postal parcels,express parcels,carry-on luggage and small parcel.
Intelligent recognition technology is a deep learning recognition algorithm with full independent intellectual property rights,which realizes the integration of intelligent recognition algorithm and X-ray imaging software,and achieves better recognition effect
4-ch network camera input.Supports the correlating passenger and package,and operator analysis
Data storage supports local storage,view and playback of the images and alarm information,realizing playback and tracing of security check information and other applications.It has large storage capacity,supports millions of pictures,and defaults to one month of video recording (6 channels and 4 meters fixed rate)
The security network supports the connection of multi-functional security check machines frThe security network supports the connection of multi-functional security check machines from mainstream manufacturers and the real-time uploading platform of security data.The platform can combine video surveillance to realize information fusion
Customs users requirements with uploading samples to the AI platform and the platform inverted mold training to obtain the exclusive identification model and issue the algorithm
| Dimension Parameters | |
|---|---|
| Appearance and Dimension | 440mm x 90mm x 340mm (W x H x D) |
| Specification Parameters | |
| Operating Temperature | 0℃to 55℃ |
| Weight | 6.6kg |
| Operating Humidity | 10%to 90%(No Condensation) |
| Power | AC110~240V（+10%~-15%），50Hz±3Hz |
| Consumption | ≤50 W |
Select the input interface of the Intelligent Security Inspection Analyzer to match the video output interface of the X-ray system, and connect the output interface to the corresponding display input. As a special case, if the X-ray system uses a DVI output, the analyzer should use DVI as the input and HDMI as the output. For optimal performance, configure the analyzer to use the same output resolution as the X-ray system before operation.
